SL series

Couplings

SL series

Galvanised

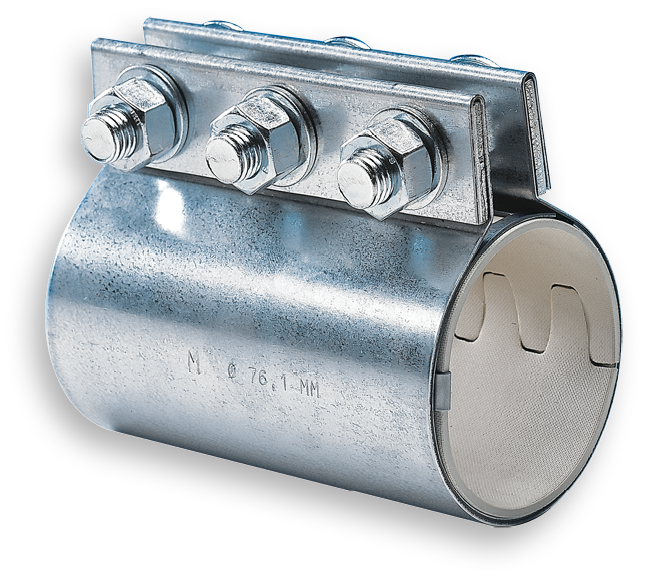

The SL series of couplings is available in galvanised, with galvanised outer shell with plate 35 x 4 mm, galvanised intermediate inner sleeve with precision meshing teeth, inner sleeve in white EPDM rubber FDA (standard).

M12 galvanised bolts up to diam. 75mm and M16 bolts from the diam. 76,1, 2 bolts for wide 100mm, 3 for 150mm, 4 for wide 200mm, 5 for 250mm and 6 for 300mm wide.

Max pressure: 6 bars.

max 6 bar

pdf DOWNLOAD PDF
of the catalogue
pdf DOWNLOAD PDF
of the product

sl-heavy-series
Verdi S.p.A. reserves the right to change or correct dimensions, cheracteristics and accessories.
